Description

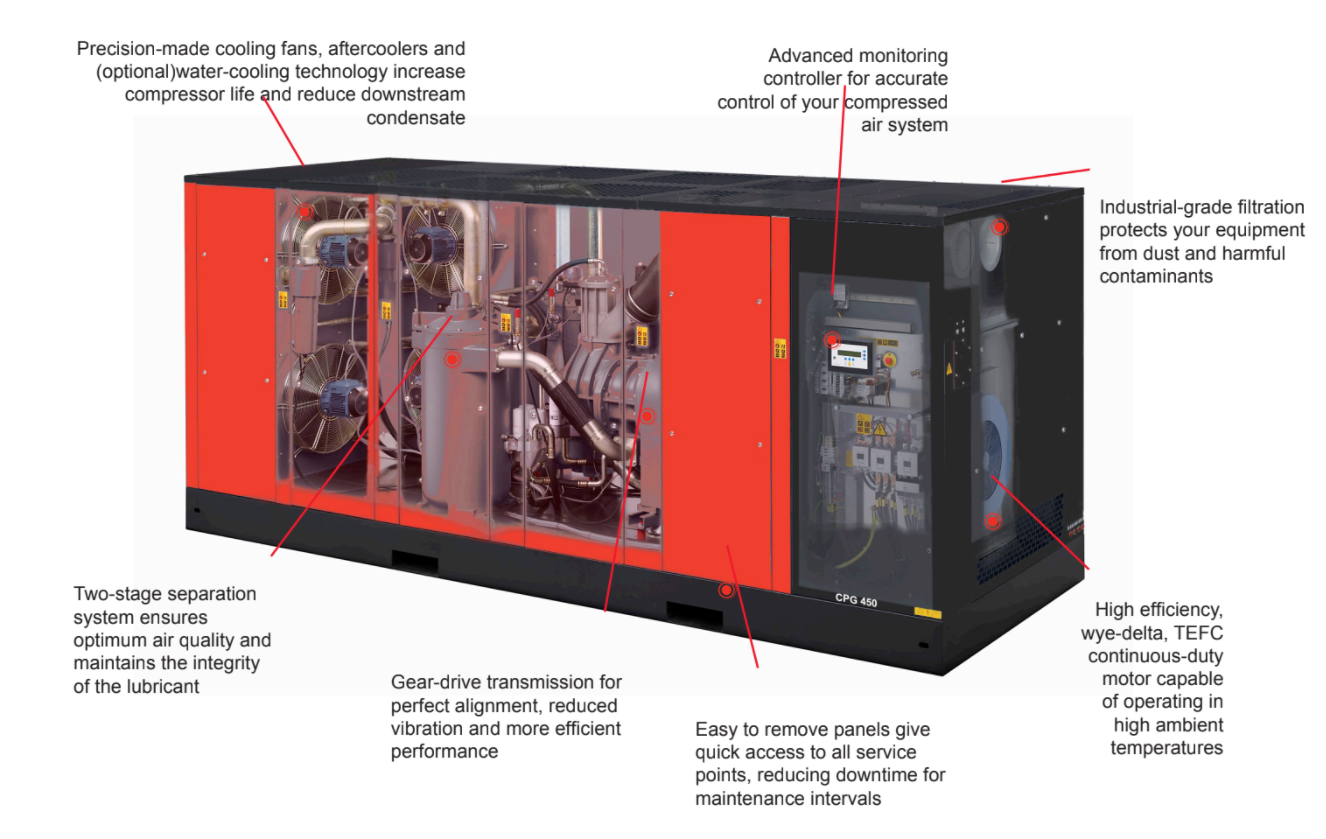

Superior Compressed Air Solution For Demanding Industries
Maximize your productivity with an optimum compressed air solution provided by the CPG series of compressors. Built-in cooling provides improved performance, reliable transmission for energy savings and an advanced monitoring system ensure you get the most from your compressed air system! The CPG series provides minimum operating cost, easy installation and simplified maintenance.
Standard Features:
- Fully enclosed low sound enclosure
- Single air-end with latest asymmetric profile (CPG 350)
- Twin air-end with latest asymmetric profile (CPG 450-500)
- Two stage oil separation (CPG 350)
- Dual air/oil separators and tanks (CPG 450-500)
- Wye-delta starter, 460V (2300V and 4160V; require remote starters and panel)
- TEFC motor standard 460V (2300V and 4160V motors available)
- Dual cooling fans (CPG 350)
- Quad cooling fan system (CPG 450-500)
- Dual spin-on oil filer cartridges (CPG 350)
- Six spin-on oil filter cartridges (CPG 450-500)
- Integrated moisture separator with automatic & manual drains
- Heavy duty inlet unloader has less parts and lower pressure drop (CPG 350)
- Dual heavy duty inlet unloader (CPG 450-500)
- ES4000 Advanced Controller (CPG 350)
- Advanced microprocessor controller (CPG 450-500)
| Model | CPG-350(A) | CPG-350(W) | CPG-450(A) | CPG-450(W) | CPG-500(A) | CPG-500(W) |
| Horsepower | 350 | 350 | 450 | 450 | 500 | 500 |
| acfm @ 100 psig | 1960 | 1960 | 2187 | 2187 | 2390 | 2390 |
| acfm @ 125 psig | 1811 | 1811 | 1988 | 1988 | 2204 | 2204 |
| acfm @ 150 psig | 1660 | 1660 | 1759 | 1759 | 1977 | 1977 |
| acfm @ 200 psig | 1412 | 1412 | 1460 | 1460 | 1657 | 1657 |
| Sound Level (dBA) | 78* | 72* | 82 | 74 | 87 | 75 |
| L x W x H (in) | 134 x 79 x 91 | 134 x 78 x 91 | 237 x 84 x 98 | 165 x 90 x 104 | 237 x 84 x 98 | 165 x 90 x 104 |
| Base Weigh (lb) | 14,368* | 12,465 | 20,701 | 17,861 | 20,701 | 17,861 |
*Varies by pressure range
CPG 350 ES4000 Advanced Controller
Features:
- Graphic Display
- Automatic Restart After Voltage Failure
- I/O Expandable
- Graphic Service Plan Indicator
- Remote Pressure Sensor Possible
- Real Time Trending
- Remote Monitoring
- Master Control Capability
- ECOntrol 6i integrated (see below)
CPG 450-500 Advanced Microprocessor Controller
Features:
- Overall system performance status with pro-active service indications, alarms for malfunctions and safety shutdowns
- Multi-language selectable display
- All monitoring and control functions via one interface
- Wide communication possibilities
- Integration possible in many process control systems (field bus system)
Central Controller ECOntrol 6i
Features:
- Extended functionality for up to 6 compressors using different controller types
- Controls the network from a central pressure transducer (included) on the main receiver
- Can control up to 6 Variable Speed or Fixed Speed machines
- Can control up to 6 compressors through CAN/LAN Network
- Timer based start up and shut down
- Multiple Pressure band settings
- 'Online Monitoring' available with Optional ComBox E
